Pole mounted transformers are one of the most widely used solutions in electrical distribution networks, ensuring safe and efficient voltage transformation for residential, rural, and light commercial applications. Installed directly on utility poles, these transformers step down high-voltage electricity from distribution lines to lower voltages suitable for everyday use.
What is a Pole Mounted Transformer?

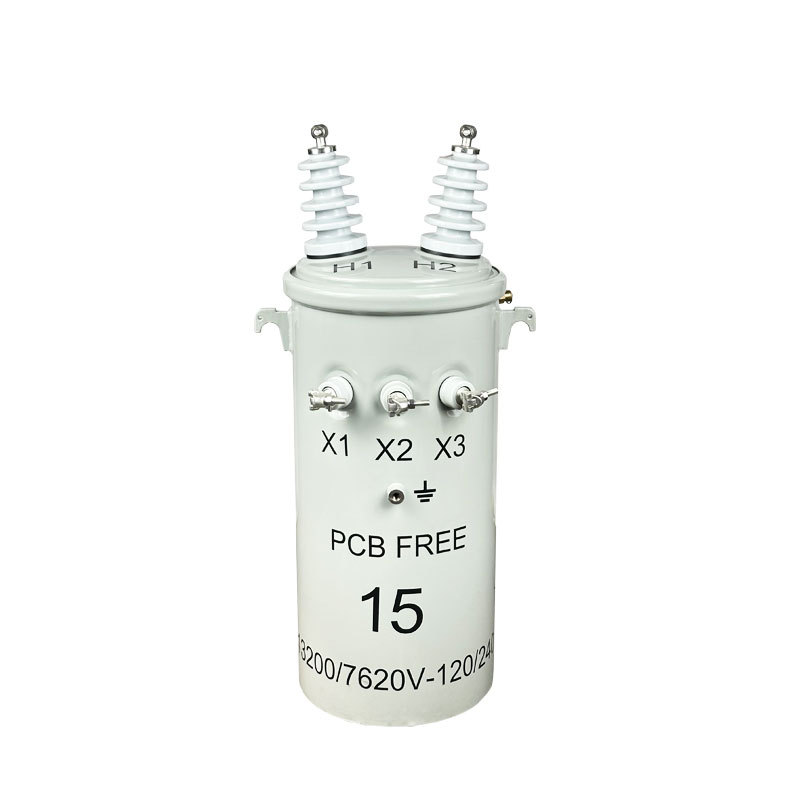

A pole mounted transformer is a type of distribution transformer designed to be installed above ground on utility poles. Its main purpose is to reduce high distribution line voltage (such as 11 kV or 33 kV) to usable secondary voltages like 120/240 V for residential homes or 400/230 V for small businesses. This design makes electricity readily available in both urban and rural areas.
Key Features of Pole Mounted Transformers
Compact and Lightweight Design 每 Allows easy installation on wooden, concrete, or steel poles.
Voltage Flexibility 每 Handles various primary voltages and delivers standardized secondary outputs.
Durable Construction 每 Oil-immersed units with strong enclosures withstand outdoor environments.
Cooling System 每 Natural air and oil cooling methods (ONAN) ensure stable performance.
Protection Devices 每 Equipped with fuses, lightning arresters, and pressure relief mechanisms for safety.
Standards Compliance 每 Built to IEEE, IEC, CSA, and NEMA standards for global reliability.
Applications of Pole Mounted Transformers
Residential Areas: Delivering safe and reliable electricity to homes.
Rural Electrification: Providing access to remote and sparsely populated regions.
Commercial Loads: Powering small shops, schools, and community centers.
Agricultural Operations: Supporting irrigation systems, grain processing, and farm equipment.
Advantages of Pole Mounted Transformers
Cost-Effective Installation: Simple pole mounting reduces land use and infrastructure costs.
Efficient Power Delivery: Brings electricity directly from overhead lines to end-users.
Flexibility: Suitable for both urban edge networks and rural areas.
Accessibility: Elevated position reduces risk of vandalism and flooding.
Low Maintenance: Long service life with minimal upkeep.
Conclusion
Pole mounted transformers are a practical and economical choice for power distribution worldwide. Their ability to deliver reliable, low-voltage electricity from high-voltage networks makes them indispensable for communities of all sizes. As demand for electricity continues to rise, pole mounted transformers will remain a cornerstone of safe and efficient power delivery.
